xLobby Remote Control Facts

xLobby has many ways in which the IR receiver and transmitter can be used, below are a few examples

1. Learn IR codes and use them to build any control interface you want, with macros including a mixture of (xLobby Control elements, IR, RS232 or any xLobby service) as well as boolean logic structures.

2. Output to 3 discrete IR zones, 2 external (rear of xLobby hardware) and one front panel IR emitter for immediate testing. So for example control two Direct TV receivers independently while using the third IR output to flood the rack with the built-in front panel IR emitter.

3. Learn virtually any remote and map its commands internally to be used to control xLobby. This makes it possible for xLobbys remote to work at the same time any other remote that has been mapped internally to xLobby to work at the same time or you can enable or disable xLobbys remote and just a single remote will work. This makes it possibe for any remote to control xLobby if needed or to be added on top of the existing  xlobby remote commands to  create more buttons to use in a universal remote. The next release of xLobby will have premapped buttons for MCE, Kaleidescape and more to come so you can install xLobby that already has a certain products IR codes availble and start using xLobby without any programming or learning IR commands.

4. Convert any IR code to RS232 or IP triggers.

5. Any networked xLobby can receive IR commands and route them to any other xLobby system on the network and rebroadcast the IR code, no need for IR distribution blocks or cabling between machines.



Wes Black

xLobby V3 – 3.0.9114.104
========================



Mantis reference numbers

0000027: [generic] no boolean logic exists in v3, if/then/else/repeat/>/=/</and/or/not (stevenhanna6) – resolved.
0000015: [generic] boolean logic for book mark popup (stevenhanna6) – resolved.
0000474: [client/server] client server, crash on large database files 15MB+ (stevenhanna6) – resolved.
0000468: [skin editor] width and height do not update in real time while resizing objects (stevenhanna6) – resolved.
0000476: [client/server] playlists are compared before refreshing for speed (stevenhanna6) – resolved.
0000479: [triggers] schedule trigger, would overwrite repeat setting to 1, and forever to true (stevenhanna6) – resolved.
0000481: [triggers] enable/disable schedule trigger does not cause reinitialization (stevenhanna6) – resolved.
0000475: [client/server] databases are updated for speed instead of re downloading all the time (stevenhanna6) – resolved.
0000473: [generic] bookmark popup, give user choice to resume from bookmark or not (stevenhanna6) – resolved.
0000478: [client/server] auto connect sometimes would connected twice causing crash (stevenhanna6) – resolved.
0000480: [triggers] short secondly schedule triggers would not startup correctly (stevenhanna6) – resolved.
0000482: [triggers] should only be able to edit one trigger at a time (could cause data loss) (stevenhanna6) – resolved.

Over the next several days I will be posting more details on how to use the new Boolean logic features in the current V3 release.

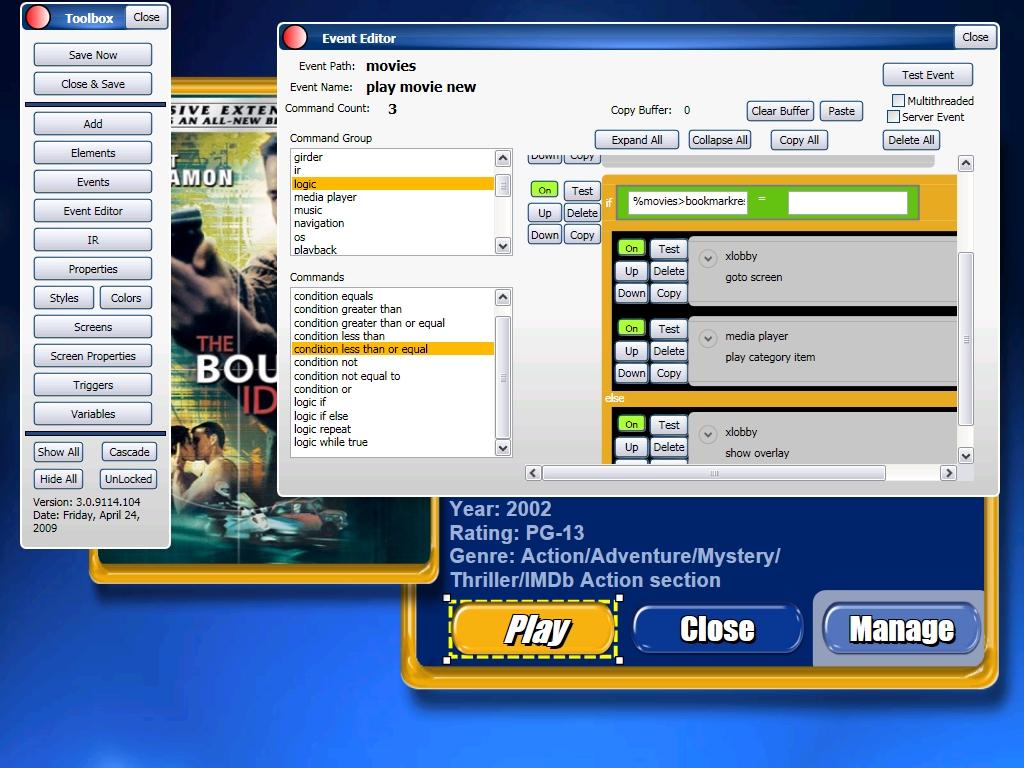

For an immediate example open the skin editor, look at the screen movieviewer.

xlobby-boolean-logic

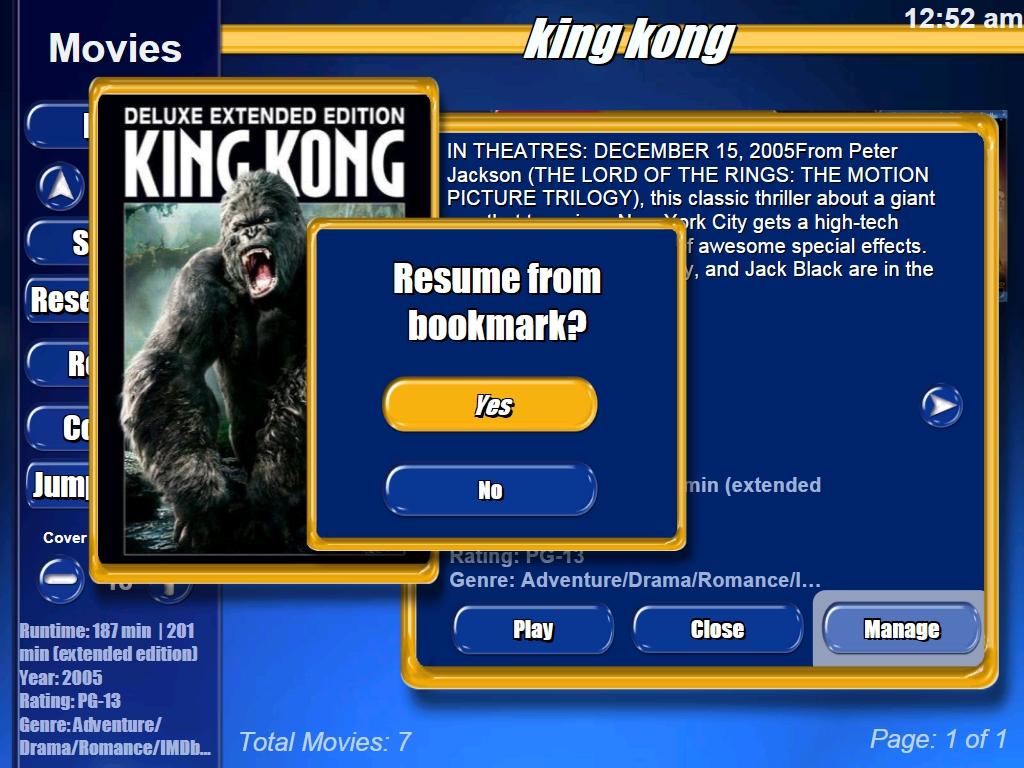

xlobby-bookmark-feature

Example: 1 (Simple Boolean Logic, Volume Control by Artist)

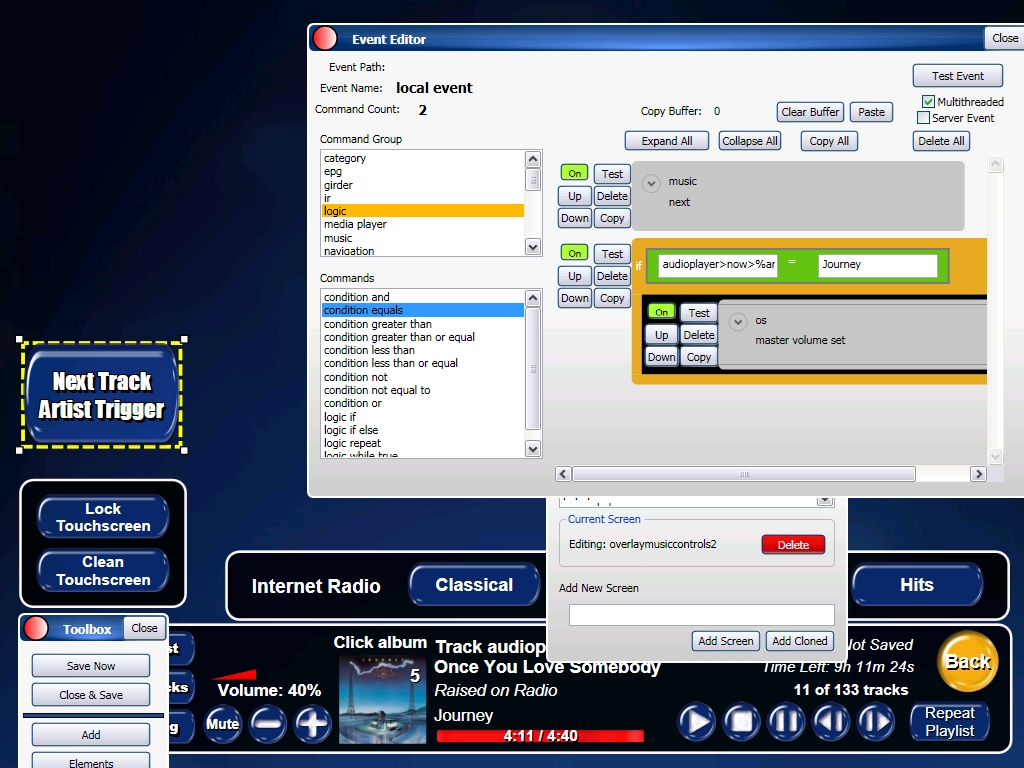

xlobby-boolean-logic-3

Screenshot 1

xlobby-boolean-logic-2

Screenshot 2

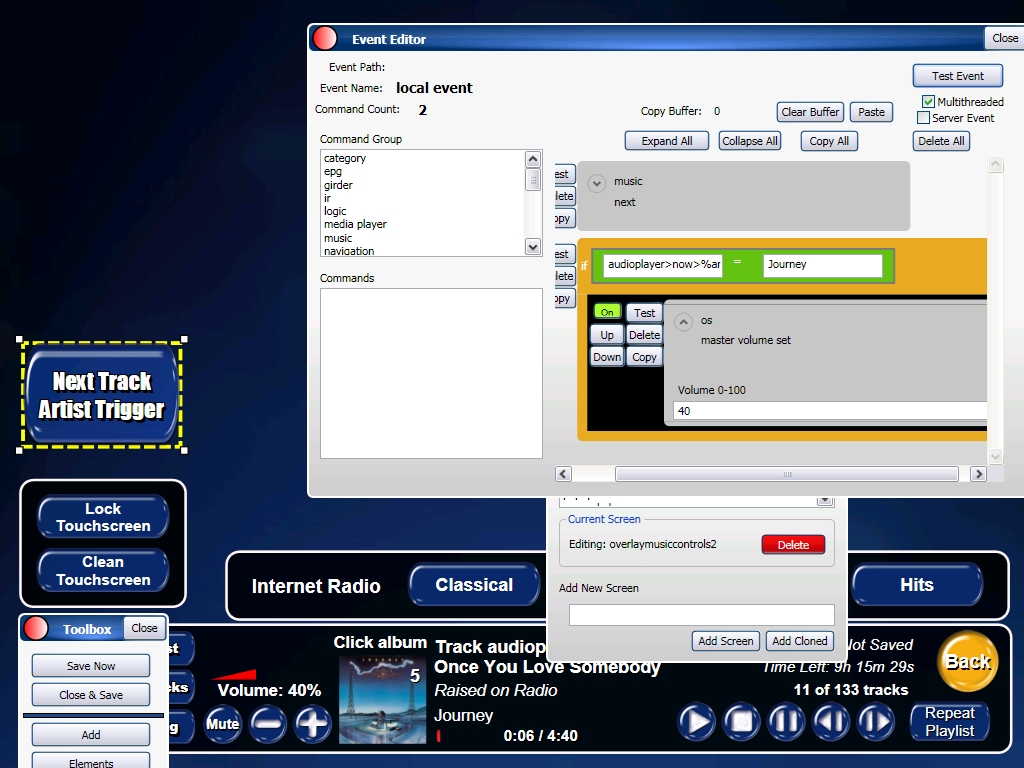

The screenshots above are of xLobby Boolean Logic in action. The Next Track Artist Button is controlling the local event you see. The first command in the event moves to the next track of the currently playing playlist which in this case is playall artists and tracks. The next event is the Boolean logic event that uses a Logic If  command with a Condition Equals command dropped on top followed by a OS Master Volume set to 40 command, see screen shot 2. So the condition event states that during a track next chage if  “audioplayer>now>%artist%” = “Journey” then set the master volume to 40%. So simply put anytime the artist Journey is played the master volume will goto 40%.

Example: 2 (Simple Boolean Logic, Preview Music for 20 Seconds)

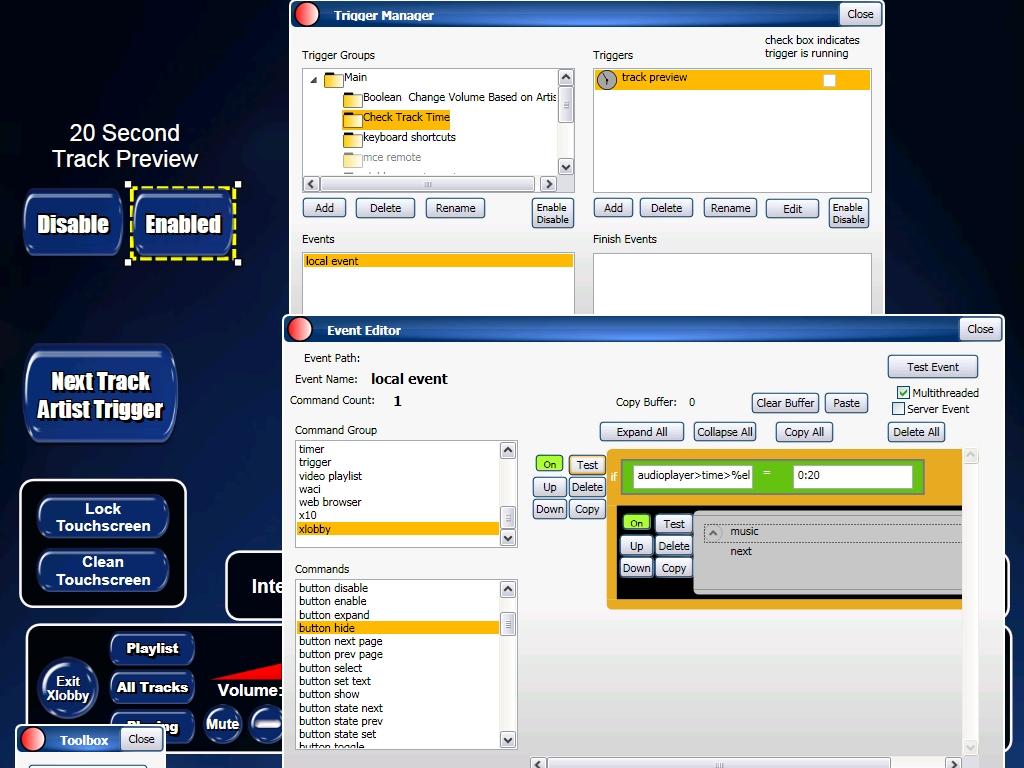

xlobby-track-preview-1

xlobby-track-preview-2

xlobby-track-preview-3

xlobby-track-preview-4

xlobby-track-preview-5

xlobby-track-preview-6

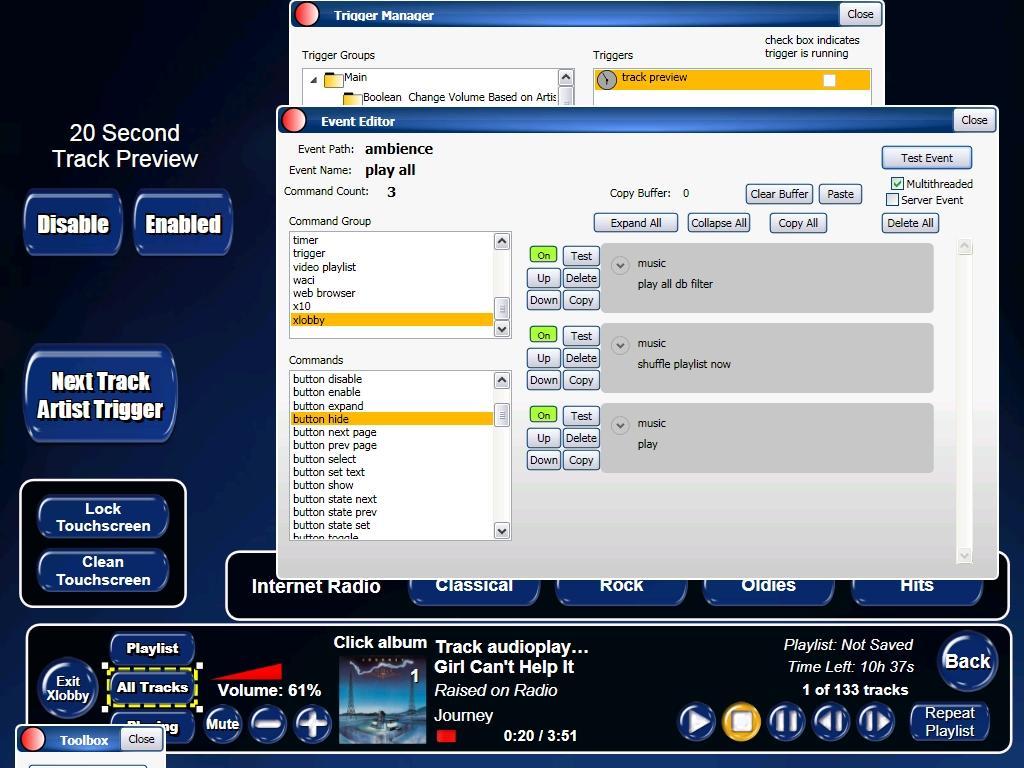

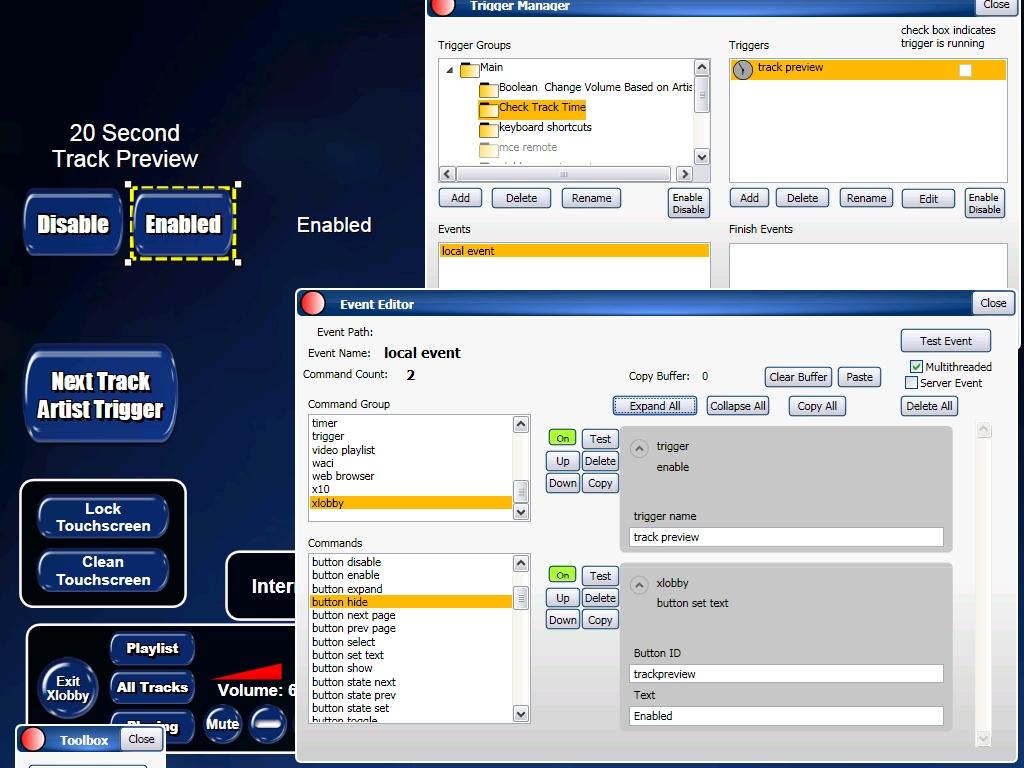

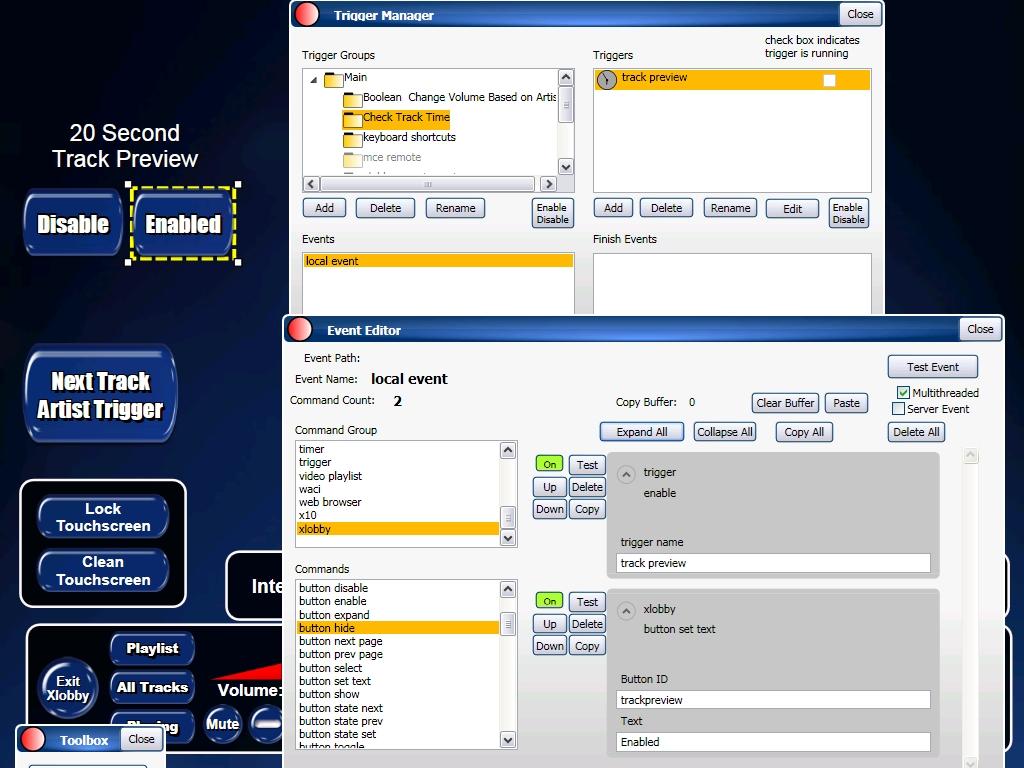

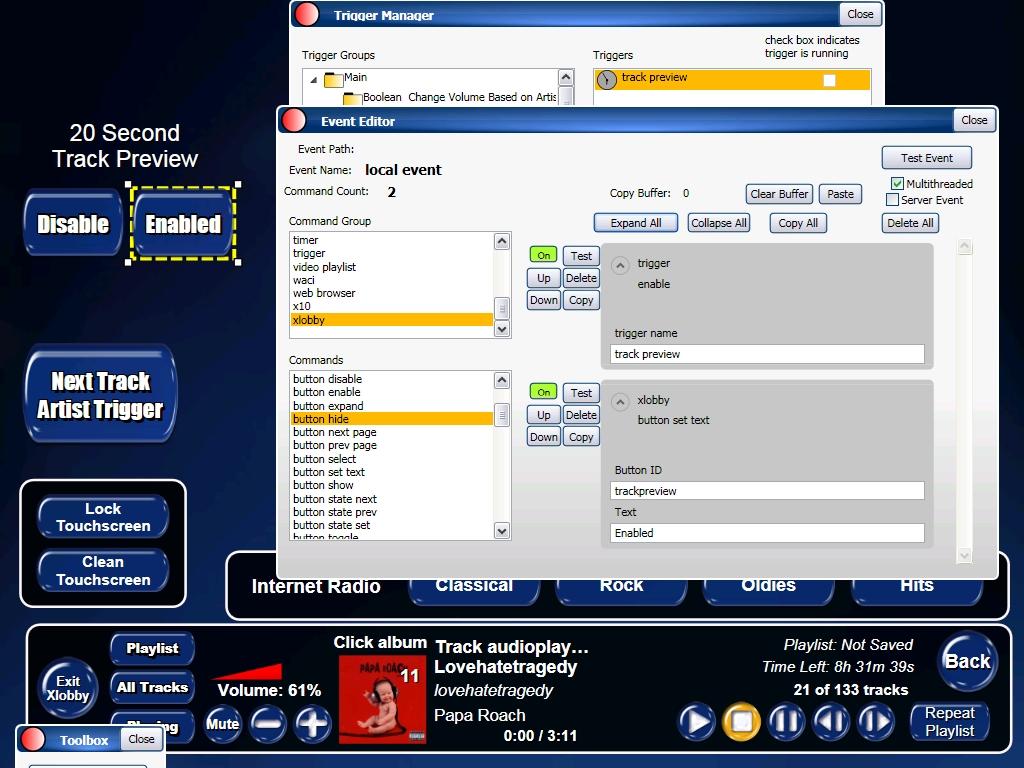

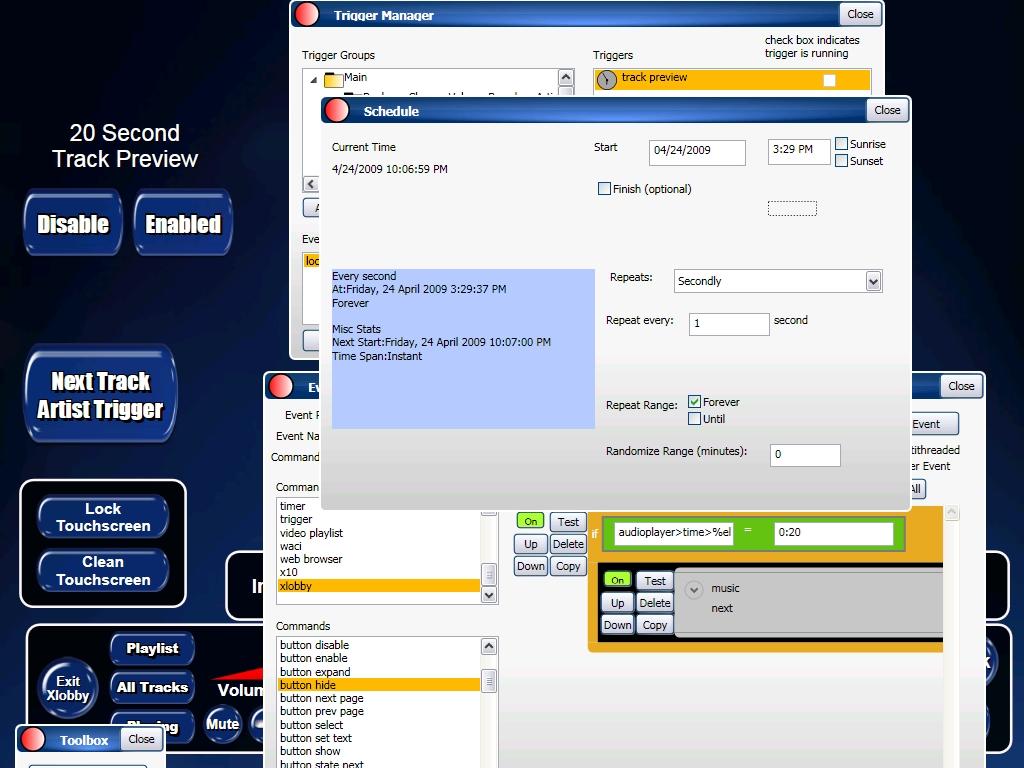

This xLobby Boolean logic example above demonstrates the use of the xLobby Triggers feature. The screenshots show 2 buttons, Disable and Enable that turns the 20 second track sample feature on and off. Here is the details: A trigger Group was created called Check Track Time with a trigger called Track Preview, the trigger is set for 1 second to look at the local Boolean event that monitors the track time position for change, when it gets to 20 the event becomes true and the event to move to the next track is triggered. The Disable and enable buttons simply Disable\Enable the trigger with a button set text to show the status of the buttons. This feature when enable will let users sample each track from a selected artist or from a large loaded playlist for 20 seconds to see if they like a particular song before moving to the next track automatically.

Wes Black

xLobby uses the winamp M3U file format for creating playlists in xLobby. Whats interesting about the M3U file format is that users on a network using a laptop or PC  that has winamp software loaded with the playback file structure  mapped to the same playback folder structure as xLobby can create playlists using winamp and store them directly in the xLobby playlist folder for example:(c:\programs\xLobby\playlists) so multiple users can create playlists outside of xLobby that will show up in the playlist manager of xLobby that was created from multiple users. Any xLobby system can also save playlists to a shared folder on a NAS or xLobby server so all users have access to the same music playlists. Also playlists created in xLobby are also usable  for playback in winamp.

Future plans include importing of playlists ftom Windows Media Player and Itunes.

Wes Black

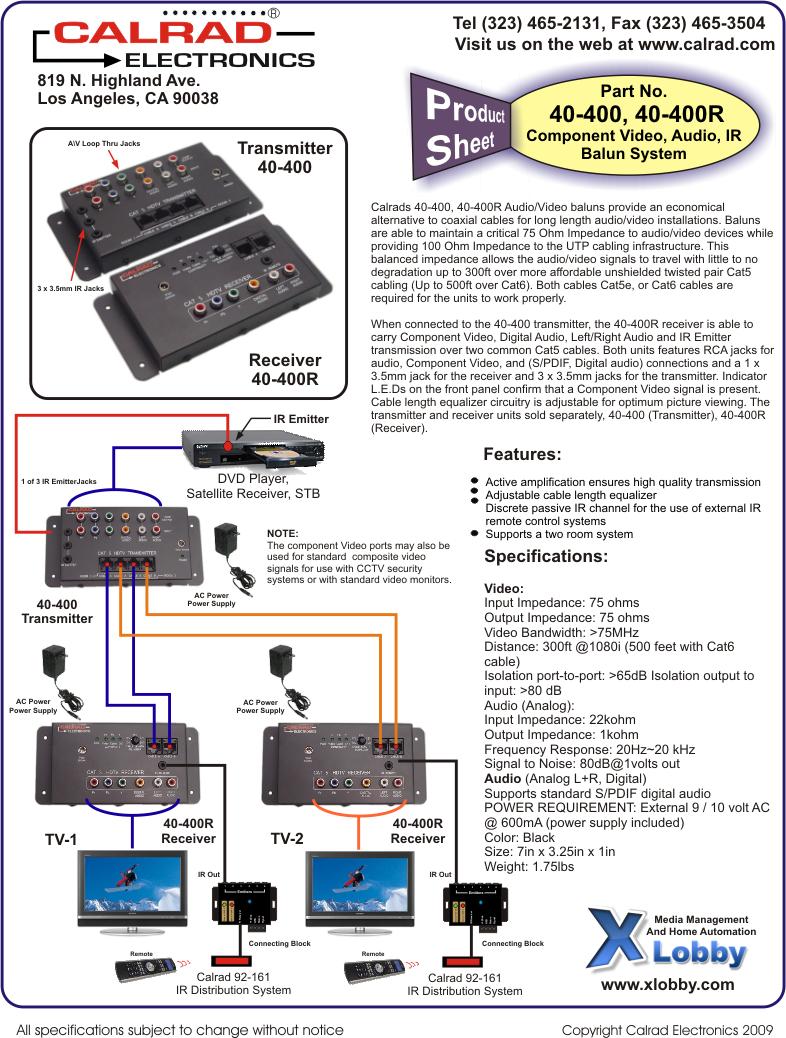

Calrads 40-400 Series Baluns work with all of our new 92 series IR distribution systems.

 40-400-40-400r

Link to PDF file: 40-400-40-400r



Wes Black

New xLobby V3 build 3.0.9107.50

Current xLobby V3 release – 3.0.9107.50
=======================



Mantis reference numbers


0000323: [generic] Movie Db delete item when files are non existing (stevenhanna6) – resolved.
0000463: [skin editor] translate reflection by x co-ordinate (stevenhanna6) – resolved.
0000465: [generic] winamp playlist import sometimes misses non ascii filename names (stevenhanna6) – resolved.
0000462: [generic] volume bar for master volume can’t be controlled with mouse (stevenhanna6) – resolved.
0000464: [generic] new command “xlobby->close overlay by name” (stevenhanna6) – resolved.

 0000458: [generic] emulated keyboard commands up/down/etc sent through an event will cause a crash (stevenhanna6) – resolved.
0000460: [generic] old (remote)_calrad_remote control_1.xml file causes conflict with new remote xml file (stevenhanna6) – resolved.
0000459: [generic] mutli screen display zero/one will cause crash on exit (stevenhanna6) – resolved.
0000461: [skin editor] reflection opacity value, reflection skew x angle (stevenhanna6) – resolved.



Wes Black

xLobby xController – Uconnect

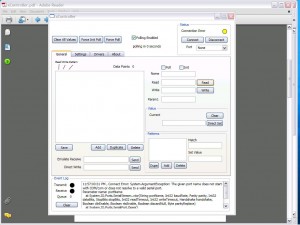

The latest versions of xLobby includes all the new services,  Lighting, Russound, xController. A Basic instructions pdf file for using the new xController is included in the root directory of xLobby under Services, xController folder.

The xController will let you speak to any device that communicates 2-way RS232 or IP based protocols. Create drivers for devices on the fly.

xcontroller



Wes Black

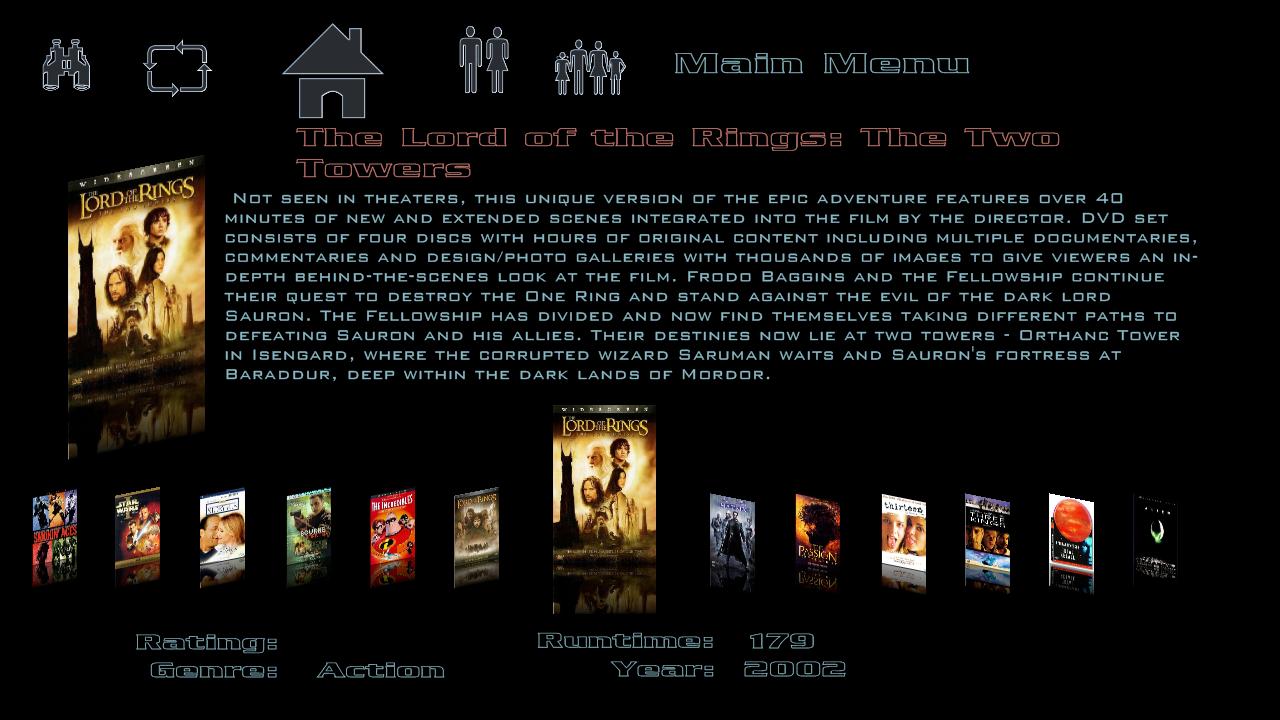

xLobby Glass Skin (Marbles)

Marbles is working on a new skin…….check it out…!, its still a work in progress.

Link:

http://xlobby.com/forum/viewtopic.php?p=48997#48997

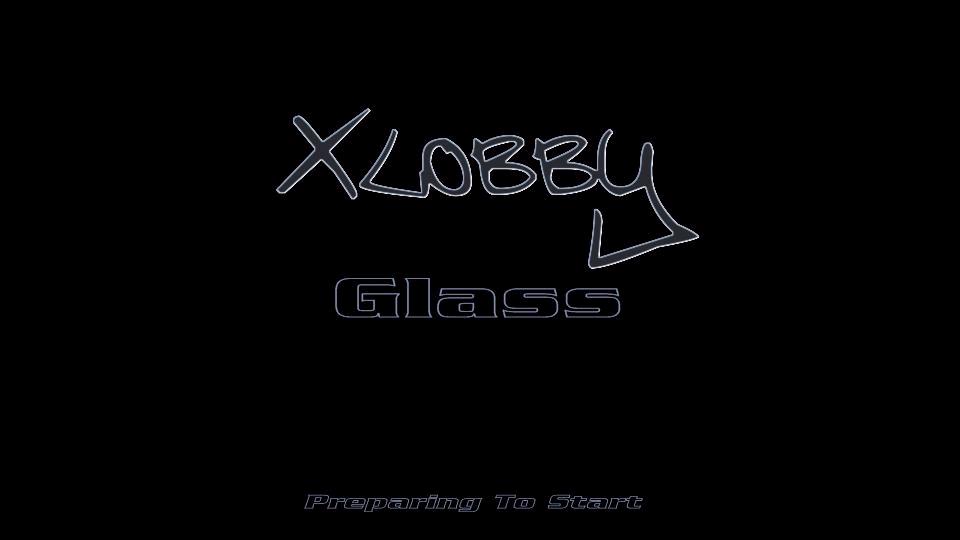

xlobby-glass-start

xlobby-glass-movies



Wes Black

New xLobby Release

Exciting xLobby release…..!, Builds 3.0.9100.96, 3.0.9104.30

1.  Display 0,1 is working in the new build.

2.  Reflections and image effects.

3.  Several bug fixes, please see mantis for all the details.

A.  Offset, changes the reflections distance from the image, text elements. Works using positive or negative numbers.

B.  Gradient Cuttoff, chages the reflections gradient settings from 0-100, show or hides more of the reflection vertically.

C.  Skew Angle X, Skews elements Left to Right, Left to Right, works using positive or negative numbers.

D.  Skew Angle Y, Skews elements Up to Down, Down to Up, works using positive or negative numbers.

E.  Rotate Angle, Rotates images, text from 0 to 360 degrees.

F.  Reflection Opacity, Sets the Reflection Opacity.

G.  Reflection Skew x Angle, Sets the horizontal position of the reflection.

Short Video:

xlobby-reflections-demo1



Screenshots:

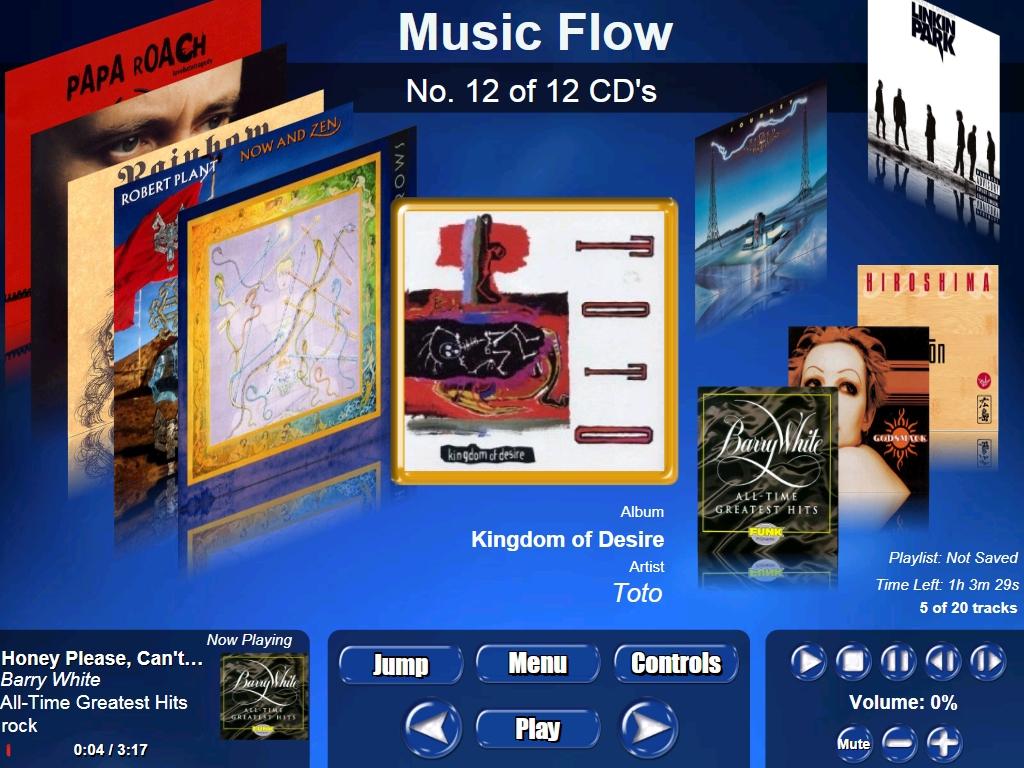

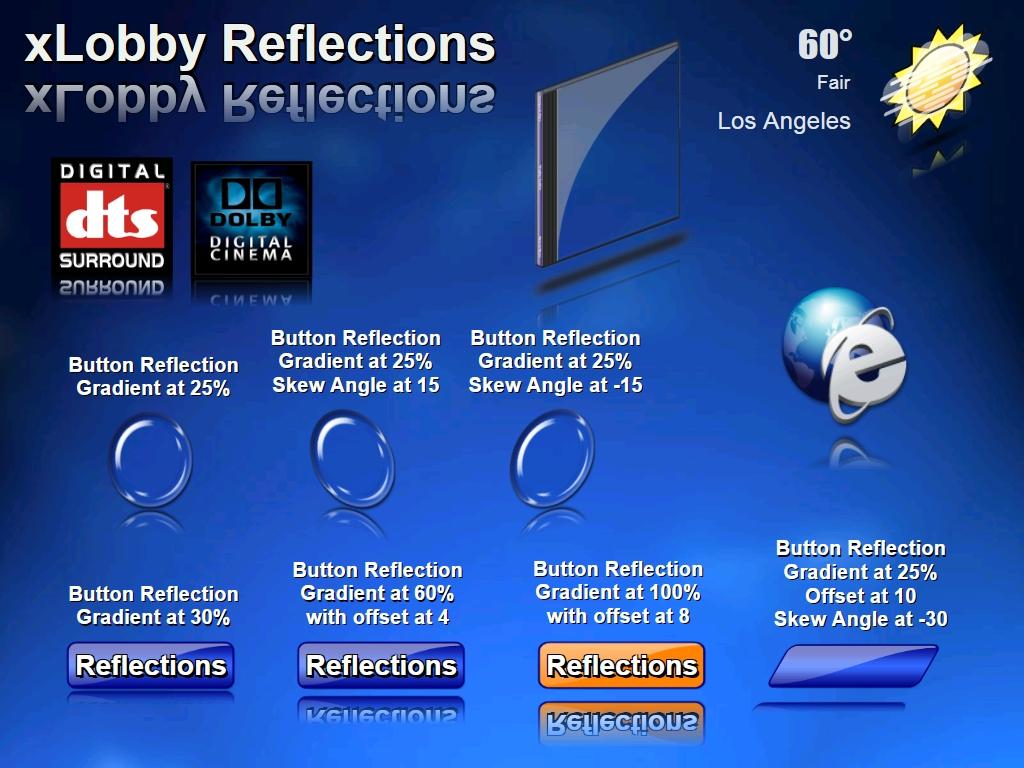

New Music Flow Menu called Music Flow Reflections

xlobby-reflections-1

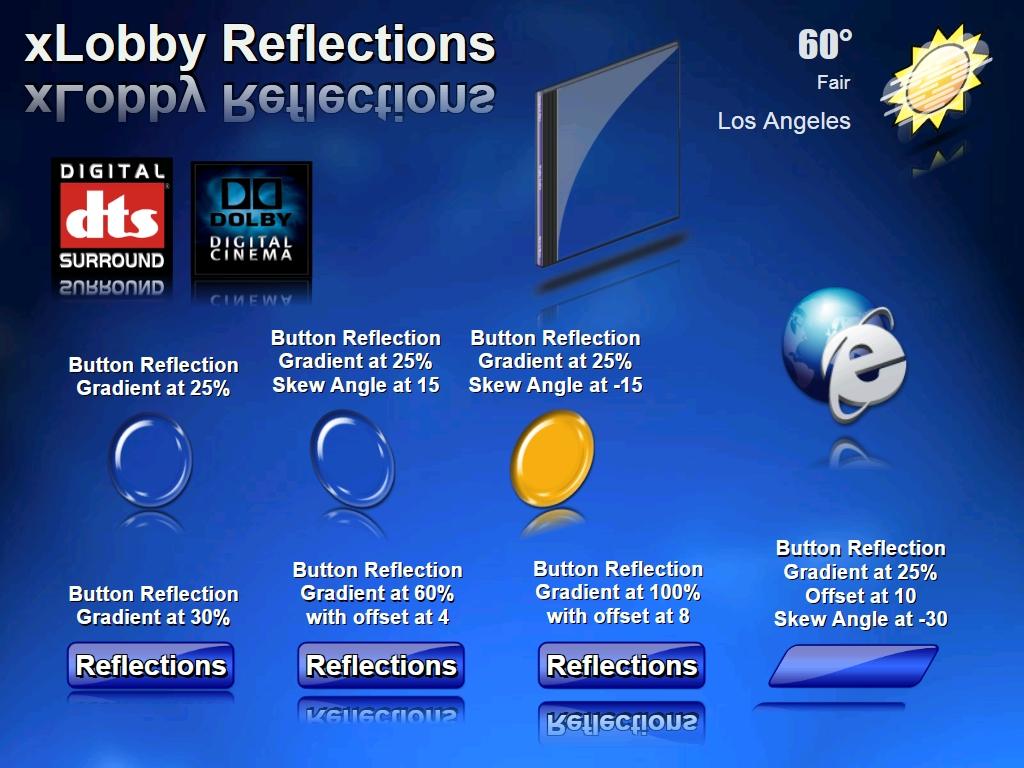

New Reflections Menus with samples of different Reflections

xlobby-reflections-2

xlobby-reflections-3

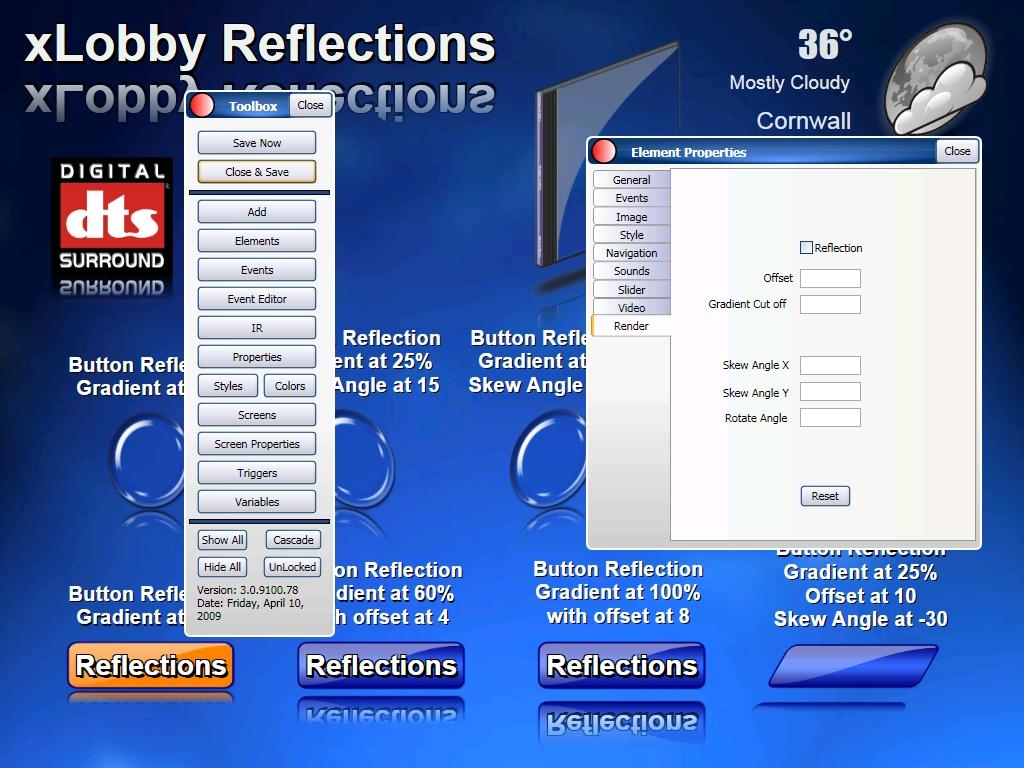

Skin Editor tools for setting, Skews, Rotation and adding Reflections

xlobby-reflections-skin-editor

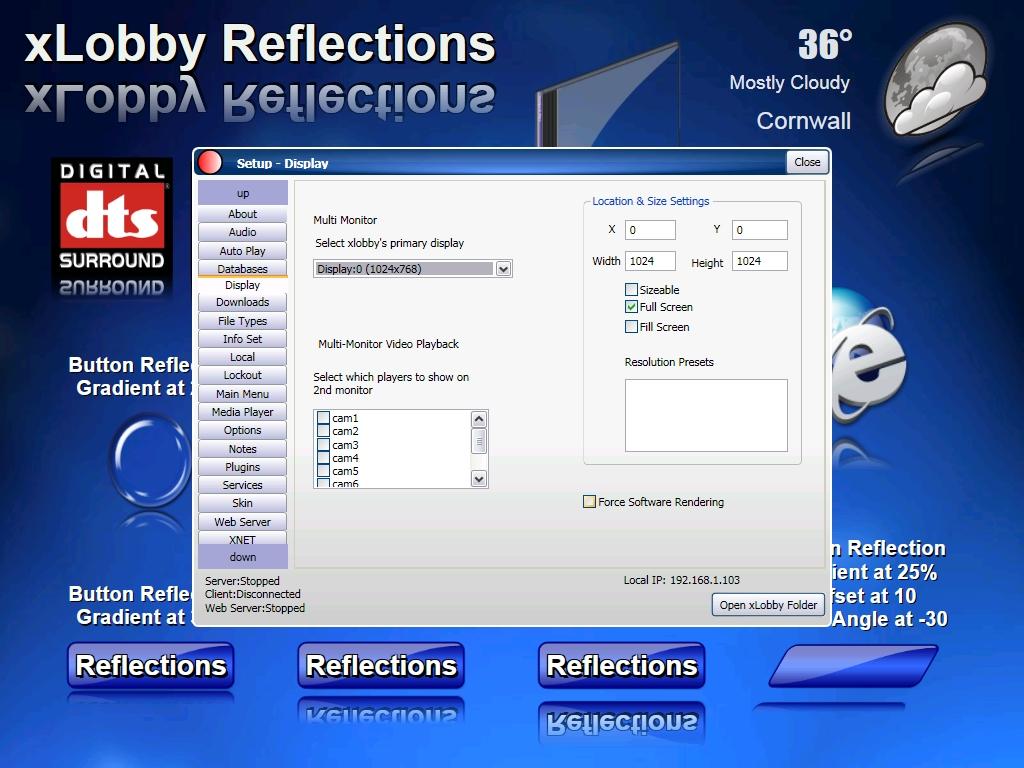

Display 0,1 setup menu

xlobby-display-setup

Note: If elements are rotated or skewed, the object handles will not allow you to resize the image manually, this will be corrected on the next release. Size the image first before appling  a rotation, also you can set values manually under properties, general.

This News Post subject to changes and updates.

Wes Black

xLobby & HP Touchsmart

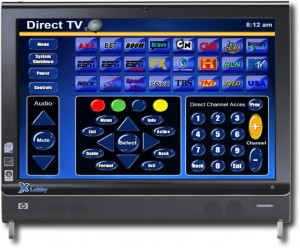

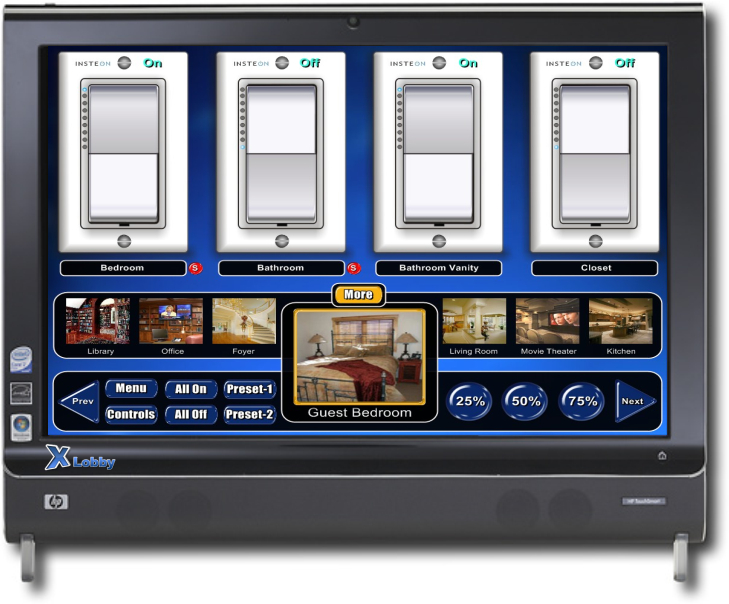

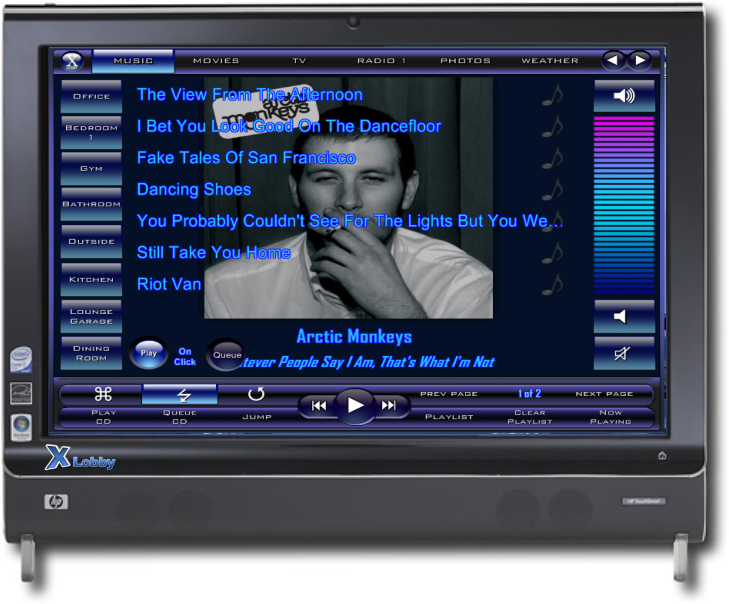

Many xLobby clients are using the HP Touchsmart systems with xLobby. Below are images with xLobby, skins shown by Andy Grooby, Baddabing, Defrag, Marbles, Calrad.  Available HP models have 22″ or 25.5″ touchscreens. HP Touchsmart systems do not offer external video out but using Calrad’s external graphics adapter 40-40AN2420 you can support VGA, DVI-D or HDMI video. This will allow xLobby display 0 and display 1 display features to have control on the HP touch smart and video on the external USB video card or the other option is to display both screens in (Mirror) mode.

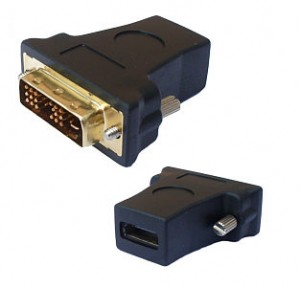

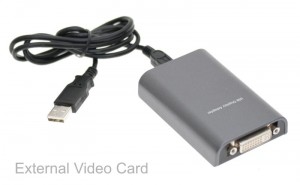

40-40AN2420 with adapters.

 xlobby-usb-video-adaptersdvi-vga21hdmi-to-dvi2

Features:

  • Add-on touchscreen, LCD-Plasma monitor or projector through a single USB 2.0 port
  • Supports up to 2 USB display adapters to work simultaneously
  • Plug & Play
  • Hot-plug; add or remove monitor without system reboot
  • Windows Vista compatible
  • Resumes from hibernation and suspend modes
  • Specifications:

  • Host Interface USB 2.0Housing Plastic
  • Video Interface DVI-I
  • Connectors
  • Video output: DVI-I 24pin + 5pin Female Connector
  • Host upstream link: USB Mini-B Type Female Connector
  • Connectivity Up to 2 adapters on a computer
  • RAM 8M x 16 DDR Synchronous DRAM (SDRAM)
  • Power Mode Bus-powered
  • Operation System Support Windows 2000 SP4, XP SP2 and Vista 32-bit
  • Supported Modes Extended Desktop (Default), Mirrored Desktop, Primary Display
  • Supported Resolutions:
    640×480, 800×600, 1024×768,
    1280×960, 1280×1024, 1360×768,
    1366×768, 1368×768, 1400×1050,
    1440×900, 1600×1200, 1680×1050
  • Dimensions 84.3 (L) x 54 (W) x17.8 (H) mm
  • USB Cable
    Separated from the body
    Type: USB A -Type Male to 5pin Mini USB B-Type Male
    Color: Black
    Length: 1M
  • Operating temperature 10-40°C
  • Storage temperature -10~80°C
  • Relative Humidity < 85% non-condensing
  • EMC
    FCC Part 15 Class B, IC ICES-003
    CE (EN55022, EN61000, EN55024)
  • RoHS RoHS compliant
  •
    Link to HP website:
    http://www.hp.com/united-states/campaigns/touchsmart/#/Main/

    Technical Data:
    http://www.hp.com/united-states/campaigns/touchsmart/#/DataSheets/

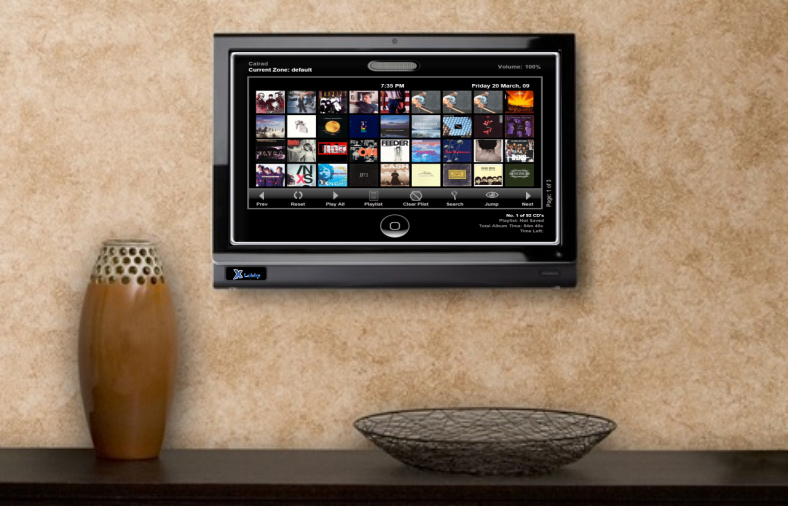

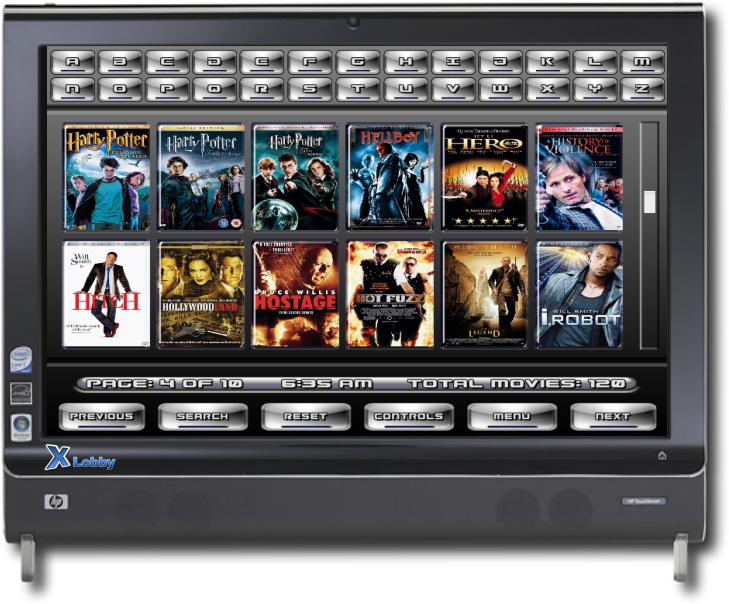

    xlobby-hp-touchsmart-on-wall

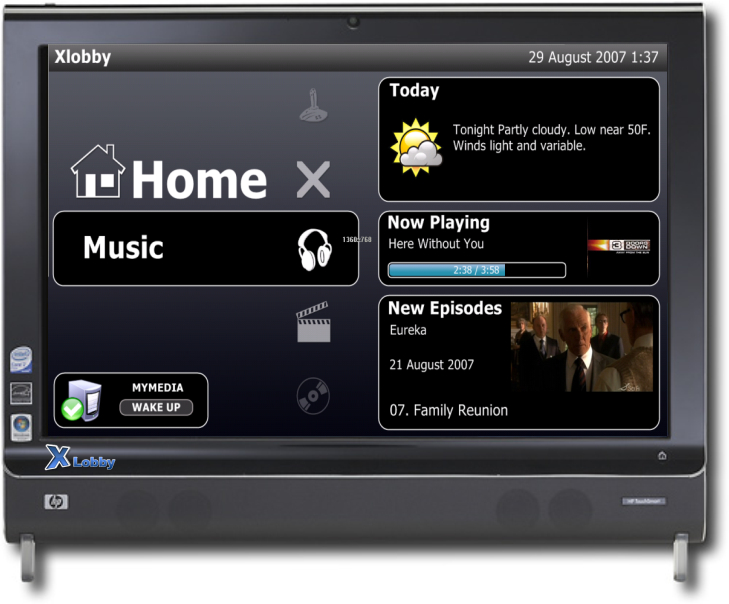

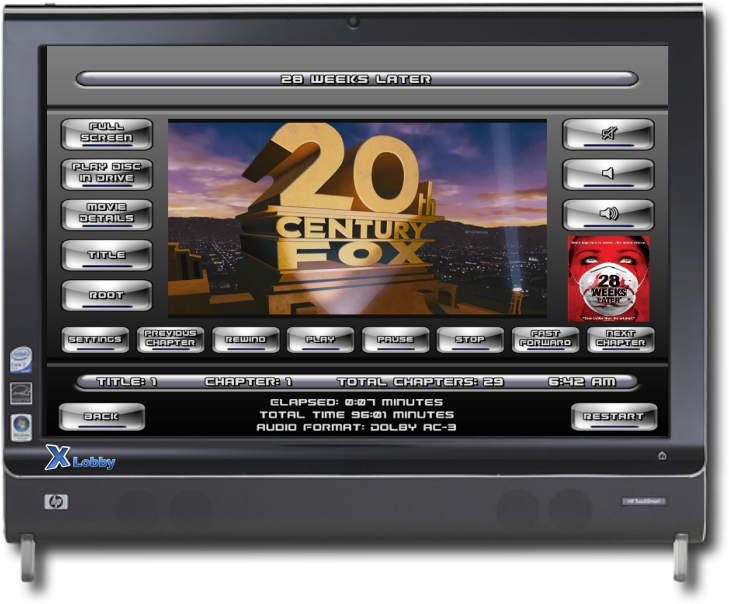

    xlobby with HP Touchsmart systems

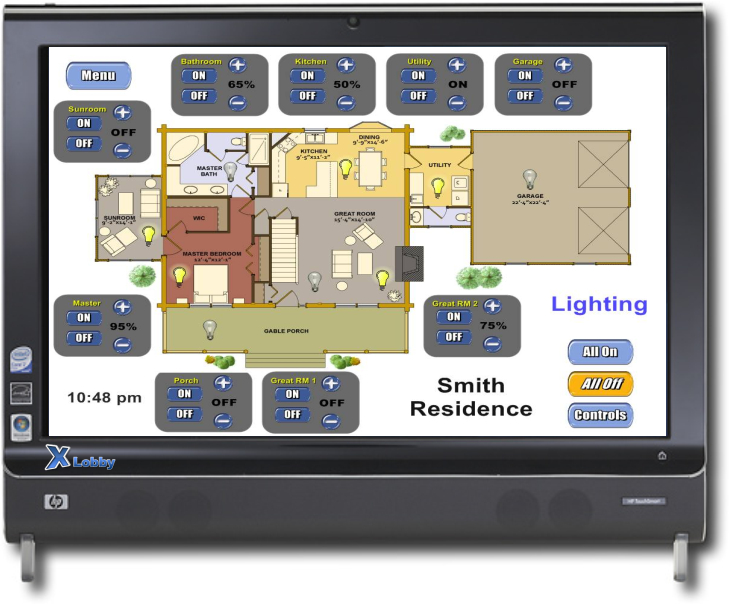

     xlobby-hp-touchsmart-lighting-contol-fp

    xlobby-hp-touchsmart-insteon

    xlobby-hp-touchsmart-direct-tv

    xlobby-hp-touchsmart-defrag

    xlobby-hp-touchsmart-baddabing-skin3

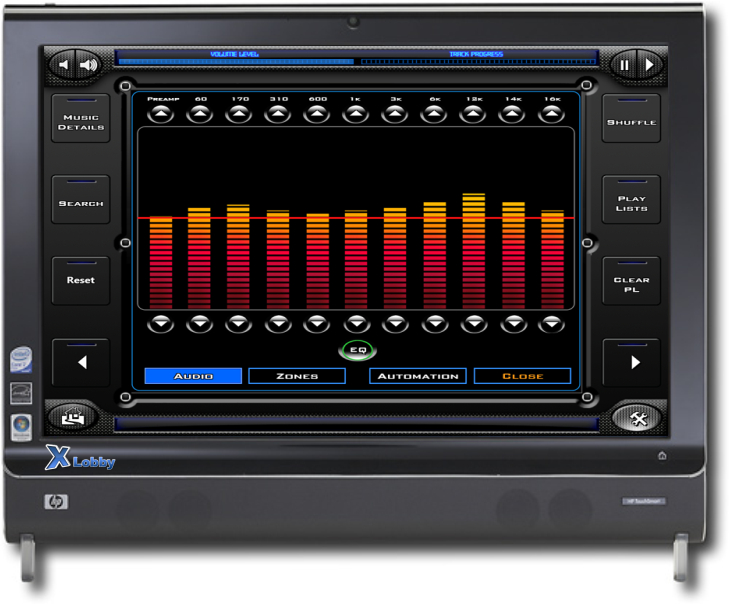

    xlobby-hp-touchsmart-baddabing-skin-eq

    xlobby-hp-touchsmart-andys-chrome2

    xlobby-hp-touchsmart-andy-chrome-mp

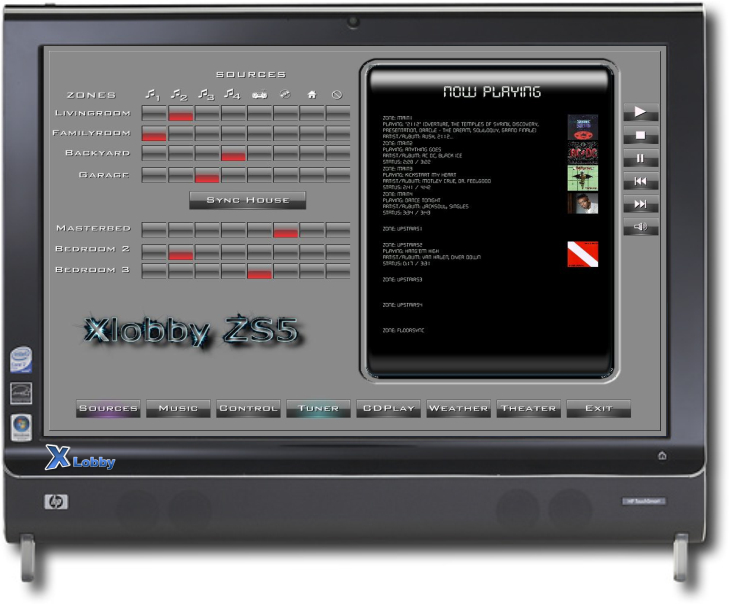

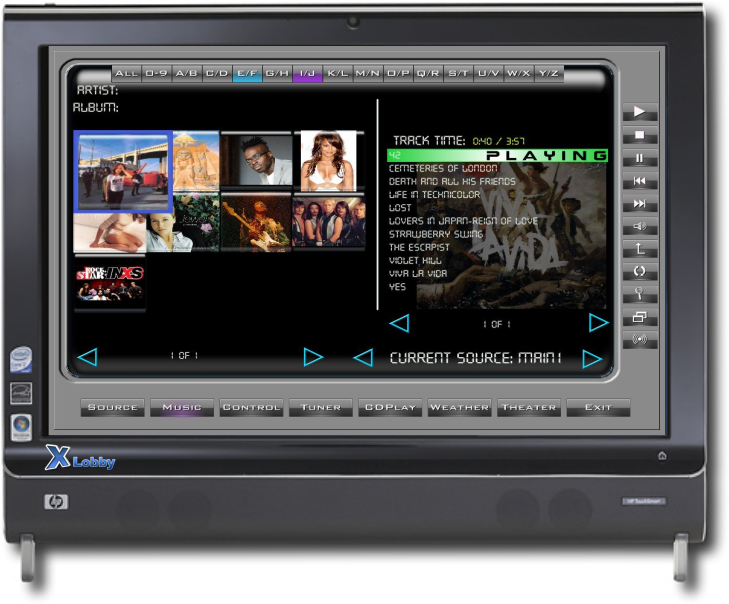

    xlobby-hp-touchsmart-zone-5-skin-music1

    xlobby-hp-touchsmart-zone-5-skin

    Wireless Mouse & Keyboard.

    touchsmart-mouse-keyboard

    Wes Black
