Archive for November, 2010

Nuvo Integration

We have added 3 new menu control screens in the xLobby default skin and updated the xLobby xcontroller to provide full duplex, 2 way communication with all Nuvo multizone audio systems.



The skin menus are configured for Nuvo Essentia but the interface can be modified to work with there other multizone audio systems.

nuvo1

Screenshot: xLobby Nuvo control page 1 of 2 for 12 zones



nuvo2

Screenshot: xLobby Nuvo control overlay



Nuvo Website:  http://www.nuvotechnologies.com/



Wes Black

Tablets Everywhere

 Samsung xPad

xLobby xPad Lighting

News Links:

http://online.wsj.com/article/SB10001424052748703805704575593550749221716.html?mod=dist_smartbrief



http://online.wsj.com/article/SB10001424052748703369704575460950108322876.html?mod=WSJ_article_related



MK-BH347_SKTABL_NS_20101104183734



Tablet manufactures:

Archos:

http://www.archos.com/

HP:

http://h71016.www7.hp.com/html/Slate/index.asp?jumpid=re_r295_psg_092310_gen_off_1/psgpromo/nbgw&psn=notebooks_tablet_pcs/notebook_pcs

Samsung:

http://www.samsung.com/us/article/do-more-on-the-go-with-the-galaxy-tab-



Wes Black

xLobby Xpad First Release

What is Xpad:

Basically xLobby is using  HTML to recreate a more dynamic 2 way interface to generate all of the same xLobby control GUI menus that  already exist in xLobby for any web based device without having to redesign the complete interface for different devices. Different menus can be created for different devices. Remember this is the first release and we will be updating the Xpad platform on a regular basis.

apple-touch-startup-image

xLobbyx new xPad Ipad splash screen screenshot

Setting up xLobby Xpad:

First download current xLobby release or bleeding edge release.

Web Browser Control using xLobbys new built in Web Server

iPad, Android, iPhone, Droid, firefox, internet explorer

XLobby can be controlled using a browser based device in using two
different methods.

1. Direct control, anything you do effects the xLobby interface your
connected too, xLobby serves up HTML jpeg image requests (Old Method).

New xLobby Xpad control
2. Independent control, each client device is on its own and has no
effect on the interface. Any page after the web will load.
Example: http://192.168.254.165:8002/web/Ipad Demo Menu
To correctly size a existing Skin menu for a particular device, clone the menu and set the viewport to the correct resolution. Note you will need to do this for each menu you want to view or control. Soon we will be adding a simple way to clone a menu on the fly to the correct resolution for Xpad.
So if you want to test one of your own menus, this is the format:
http://192.168.254.165:8002/web/Your Page Name Here

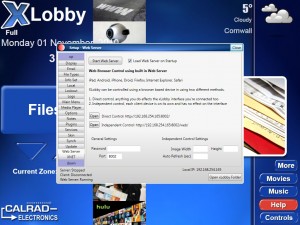

Setup Menu Webserver xPad

Screenshot: Setup webserver menu in xLobby

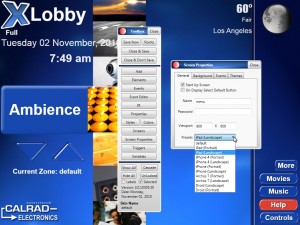

xPad Viewport Skin Editor

Screenshot: Skin editor, Screen properties, Viewport settings

xPad Ipad Demo Menu

Screenshot Ipad demo menu

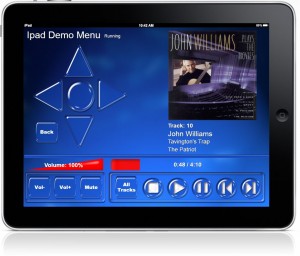

xLobby Ipad Demo Menu

Ipad demo menu on a Ipad.

Ipad demo menu for the default skin. This simple meu will control the navigation of xLobby has the ability to adjust the master volume, load up all tracks in your music library and offers media playback controls.

Ipad Demo Menu.xml, use right click Save target as… to download the file.

Link: http://www.xlobby.com/forum/download/file.php?id=1222

Install this file in your skin folder

See this News post for future details and features.

http://xlobby.com/news/2010/10/28/xlobby-v3-update-new-dynamic-html-webserver-available-soon/

If anyone is interested in sharing there Xpad menu designs or videos of them using the Xpad system on Ipads, Cell Phones or other devices, please post the details at this link.

http://www.xlobby.com/forum/viewtopic.php?f=54&t=7379

This News post is subject to updates.
